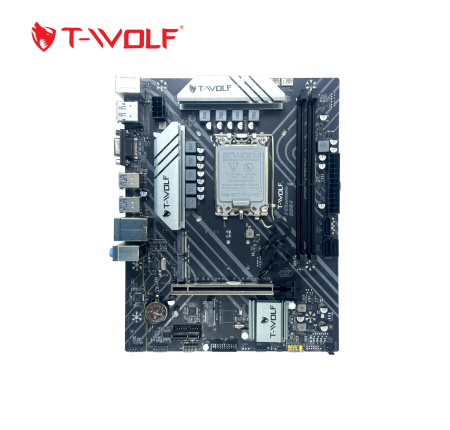

Main T-WOLF B760M4 PLUS Chính hãng
(HDMI, DP, VGA, 2xM.2 PCIe/NVMe, M.2 SATA, LAN 1000Mbps, 2 khe RAM DDR4)
Mã sản phẩm:
Giá:
1.580.000đ
Bảo hành:
36 Tháng
Số lượng:
+ -
Tình trạng:
Liên hệ
Lượt xem:
11393
- Thông tin sản phẩm
- Bình luận
Thông số kỹ thuật
| Thương hiệu | T-WOLF |
| Mã sản phẩm | TW-B760M4 PLUS |
| SKU | 686867604 |
| CPU | Supports 12/13/14th. CPU (LGA1700) |
| Chipset | Intel B760 Express Chipset |
| Memory | 2*288-pin DDR4 SDRAM slots up to 64GB |
| Supports DDR4 2133/2400/2800/2933/3200 memory | |
| I/O interface | 1xP/S2 keyboard port,1xPS/2 mouse port |
| 1xVGA port, 1xDP port, 1xHDMI port | |
| 2xUSB2.0/4xUSB3.0 | |
| 1×3-in-1 Audio port(line in/line out/MIC in) | |
| Onboard interface | 1×24-pin ATX power connector/1×8-pin ATX 12V power connector |
| 2xUSB connector, can support 2*USB2.0 & 2*USB3.0 | |
| 1xF-AUDIO connector/1xF-PANEL connector | |
| 1xF-SPEAKER connector/2x FAN connector | |
| 3xserial Sata/6GB/S connector port | |
| Integrated sound | Realtek ALC 6-channal HD Audio Codec onboard |
| Provides front audio interface | |
| Provides front stereo mic interface | |
| Integrated Lan | Realtek 10/100/1000 Mbps LAN |
| Expansion Slot | 1xPCI Express x16 slot, 1xPCI Express x 1slot |
| 1xM2 NVMe, 1xM2 Sata/M2 NVMe (Auto Switch), 1xM2 WIFI | |
| Dimension | Micro-ATX architecture(17*21 cm) |
| Driver | https://drive.google.com/file/d/1QSbaeCbAQf0RGTEC0BB-tP8b4PJkXxtK/view?usp=sharing |
